[Diode Dynamics] SS10 LED Chase Light - Preorder

 ⚠️Preorder: Estimated to ship in 2-3 weeks. Programmable chase light with 20 selectable strobing patterns. SafetyStrobe brake light with 3...
    Sale price $299.95Regular price
    Regular price $299.95

    [Diode Dynamics] SS10 LED Chase Light - Preorder

    [Diode Dynamics] SS10 LED Chase Light - Preorder

     ⚠️Preorder: Estimated to ship in 2-3 weeks.

    • Programmable chase light with 20 selectable strobing patterns.
    • SafetyStrobe brake light with 3 programmable modes.
    • Additional high-power reverse light with optional vehicle signal activation.
    • IP69K-rated for durability in extreme conditions.
    • Limited Lifetime Warranty.
    • Made in USA with Global Materials.

    Features

    • Programmable chase light with 20 selectable strobing patterns.
    • SafetyStrobe brake light with 3 programmable modes.
    • Additional high-power reverse light with optional vehicle signal activation.
    • IP69K-rated for durability in extreme conditions.
    • Limited Lifetime Warranty.
    • Made in USA with Global Materials.

    Overview

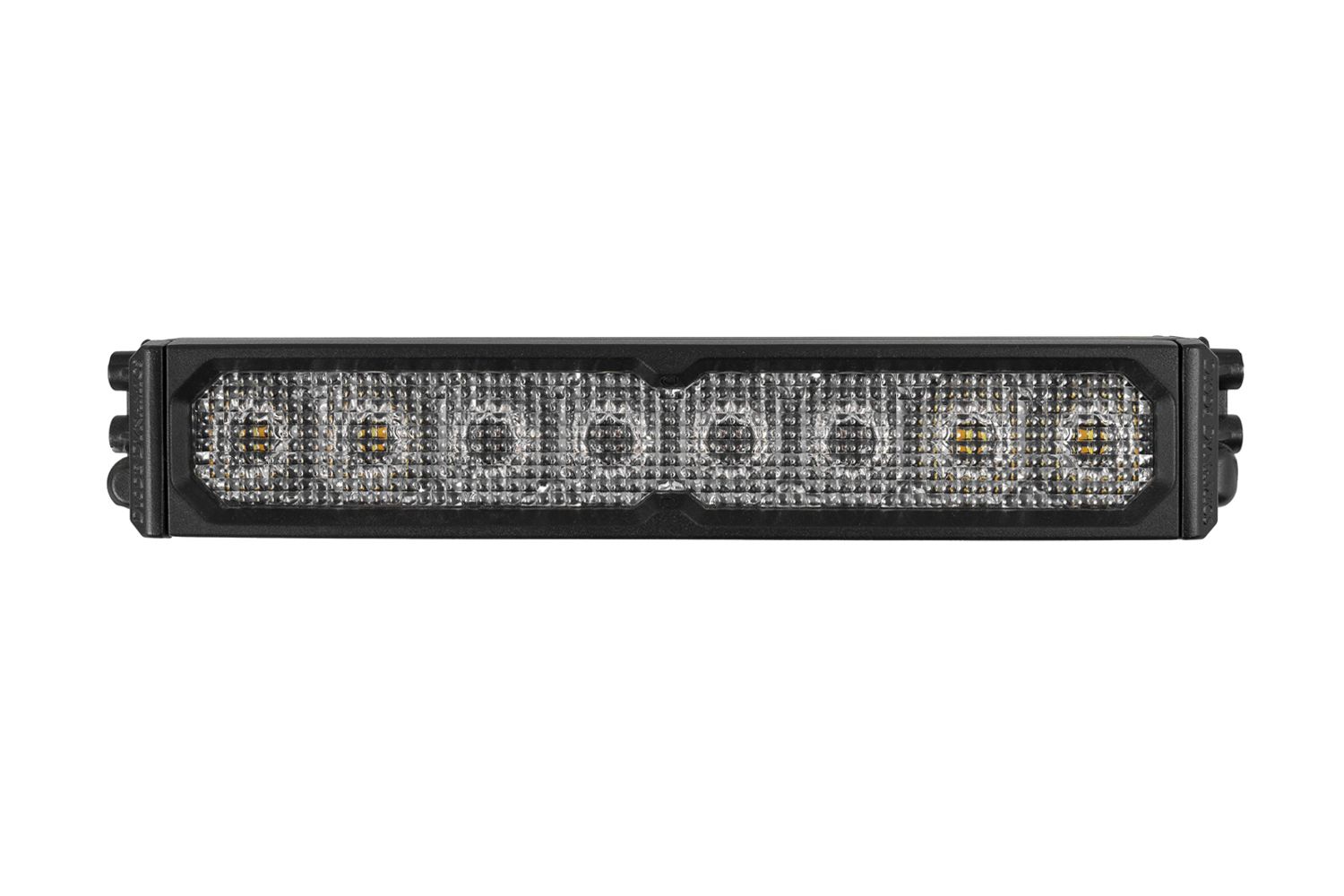

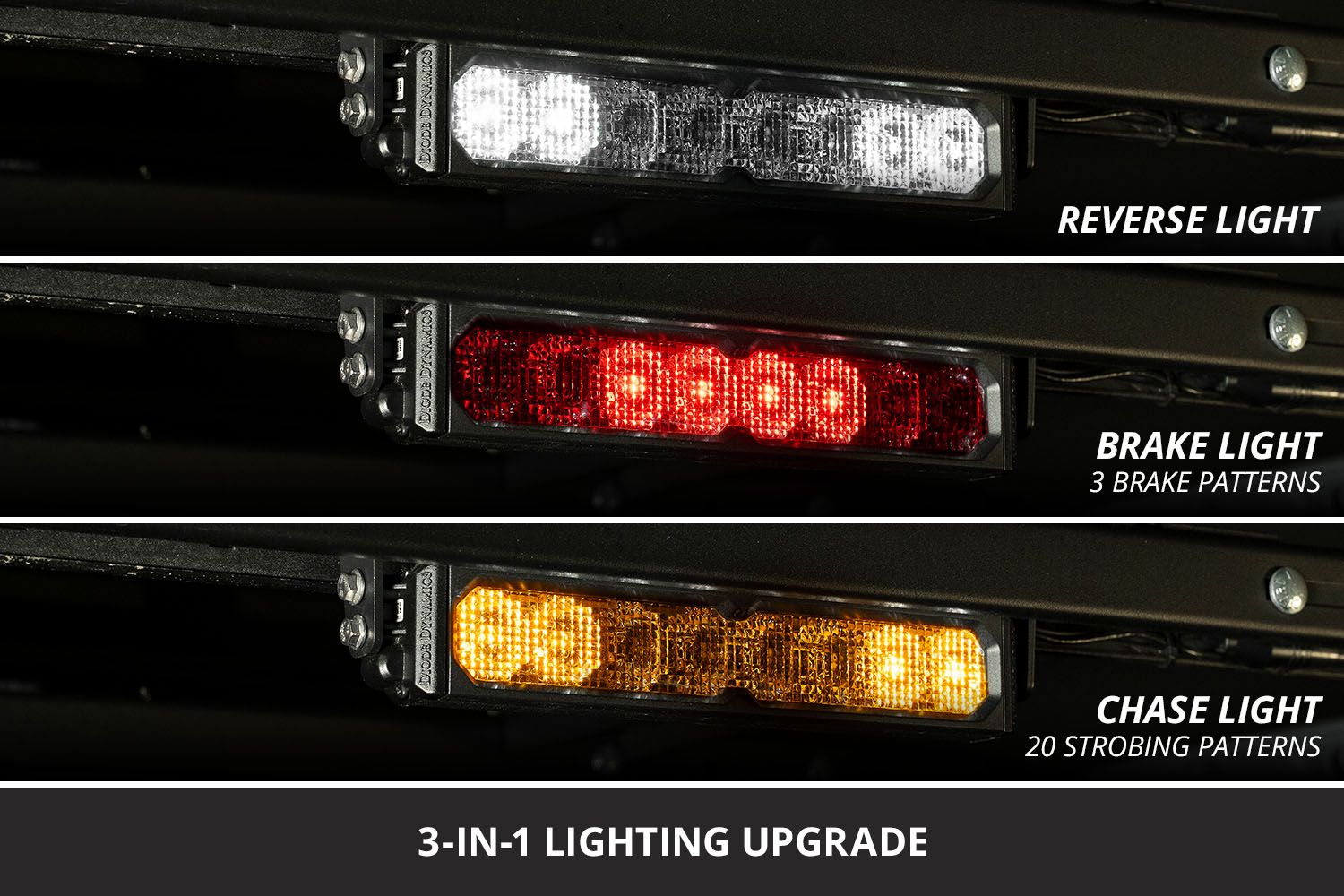

    The Diode Dynamics SS10 LED Chase Light features a 3-in-1 design, combining a yellow chase light, red brake light, and white reverse light into one compact light bar. With high-intensity LEDs, programmable strobe patterns, and SmartTap® programming, the SS10 LED Chase Light is an easy upgrade that improves visibility when it matters most.

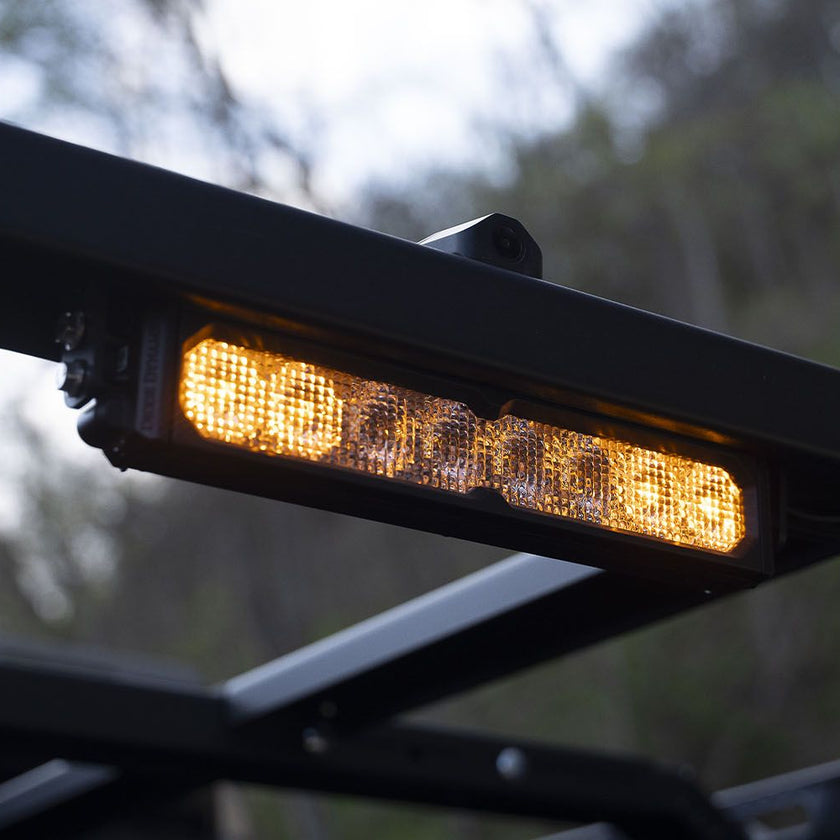

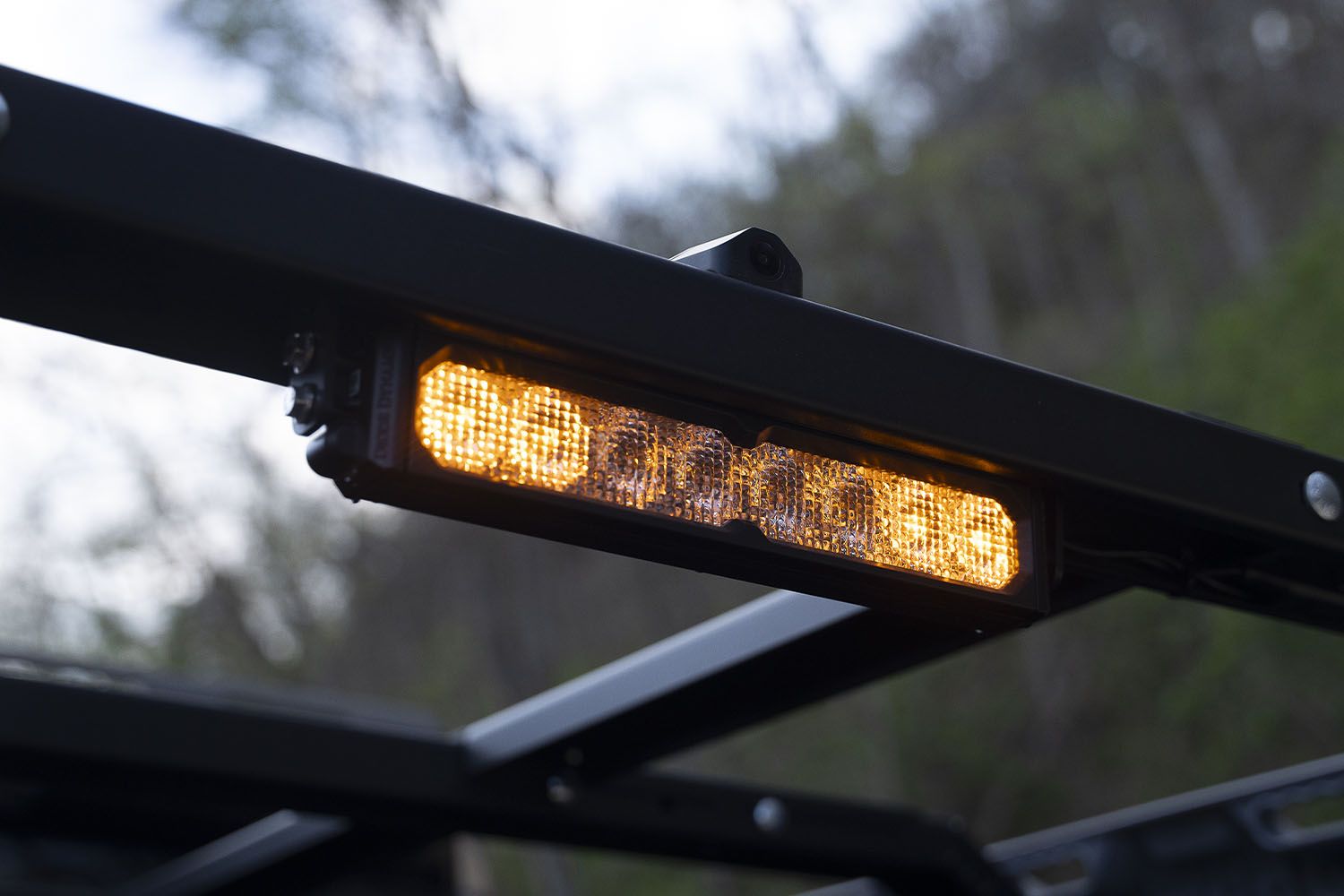

    Integrated Chase Light. Featuring a programmable yellow chase light with 20 selectable strobing patterns, the SS10 significantly improves visibility in any condition. Whether you're out on a dusty trail or stopped at a campsite, this LED Chase Light cuts through haze with a powerful yellow flood beam pattern, ensuring your vehicle stands out.

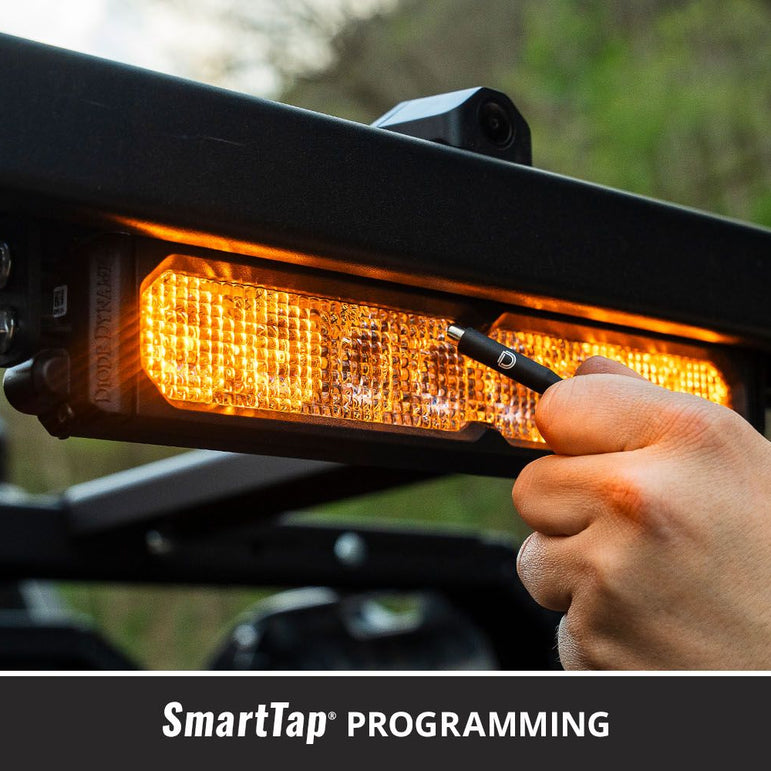

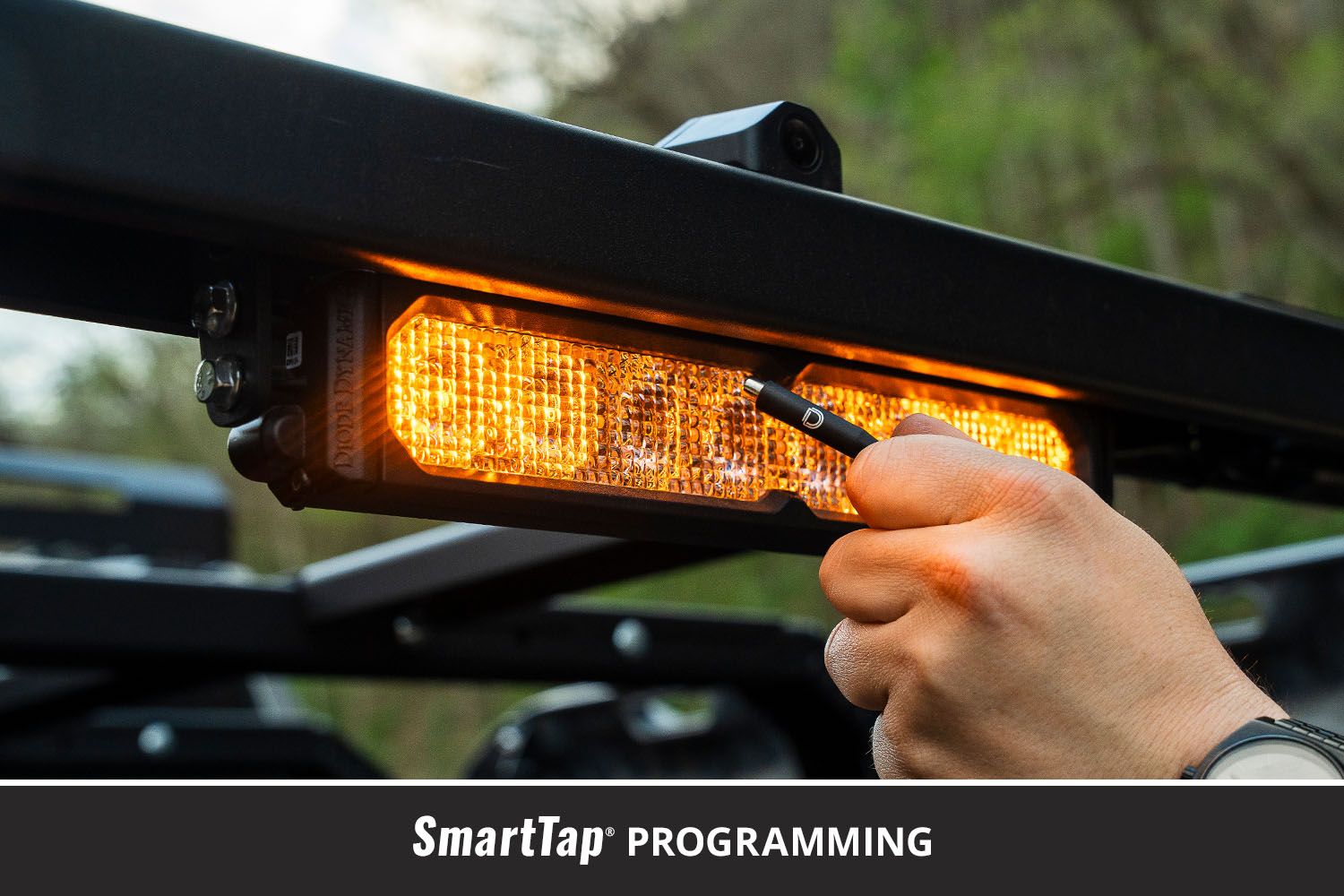

    SmartTap® Programming allows you to easily cycle through 20 chase patterns using the included magnet tool. Simply power up the chase light, tap the magnet to the bezel, and watch the pattern change until you reach your preferred operating mode. It's as simple as that!

    Brake Light Function. The SS10 LED Chase Light also adds a high-power brake light. Use the magnet tool to choose between solid illumination, triple-flash SafetyStrobe mode, or a slower pulsing mode designed for off-road use.

    Brighter Backup. Factory reverse lights are often insufficient, especially off the trail. Using patented TIR optics and high-power LEDs, the SS10 LED Chase Light provides an additional reverse light that's several times brighter than stock bulbs alone. The reverse function can optionally be wired to automatically come on when the vehicle is put in reverse.

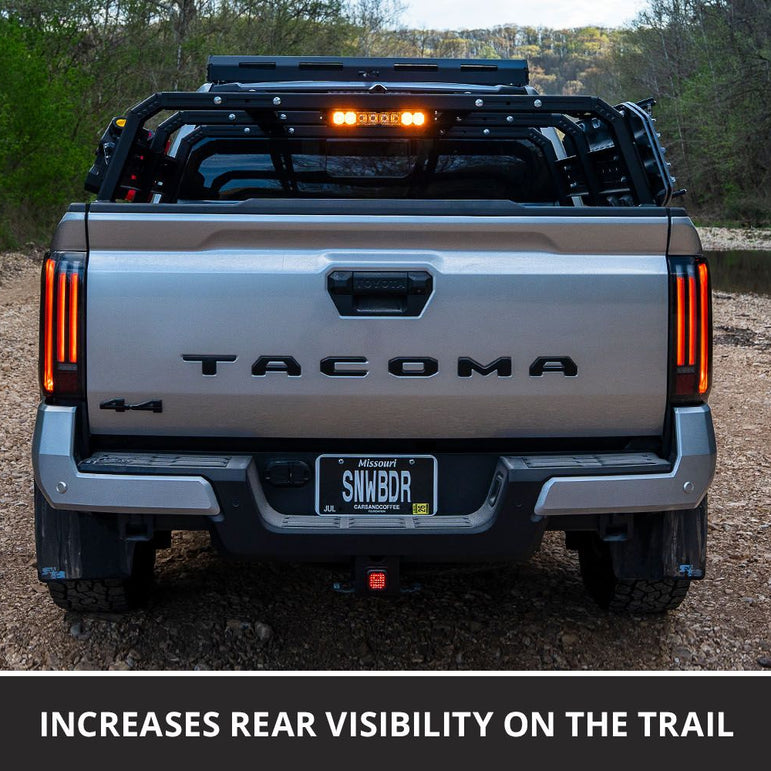

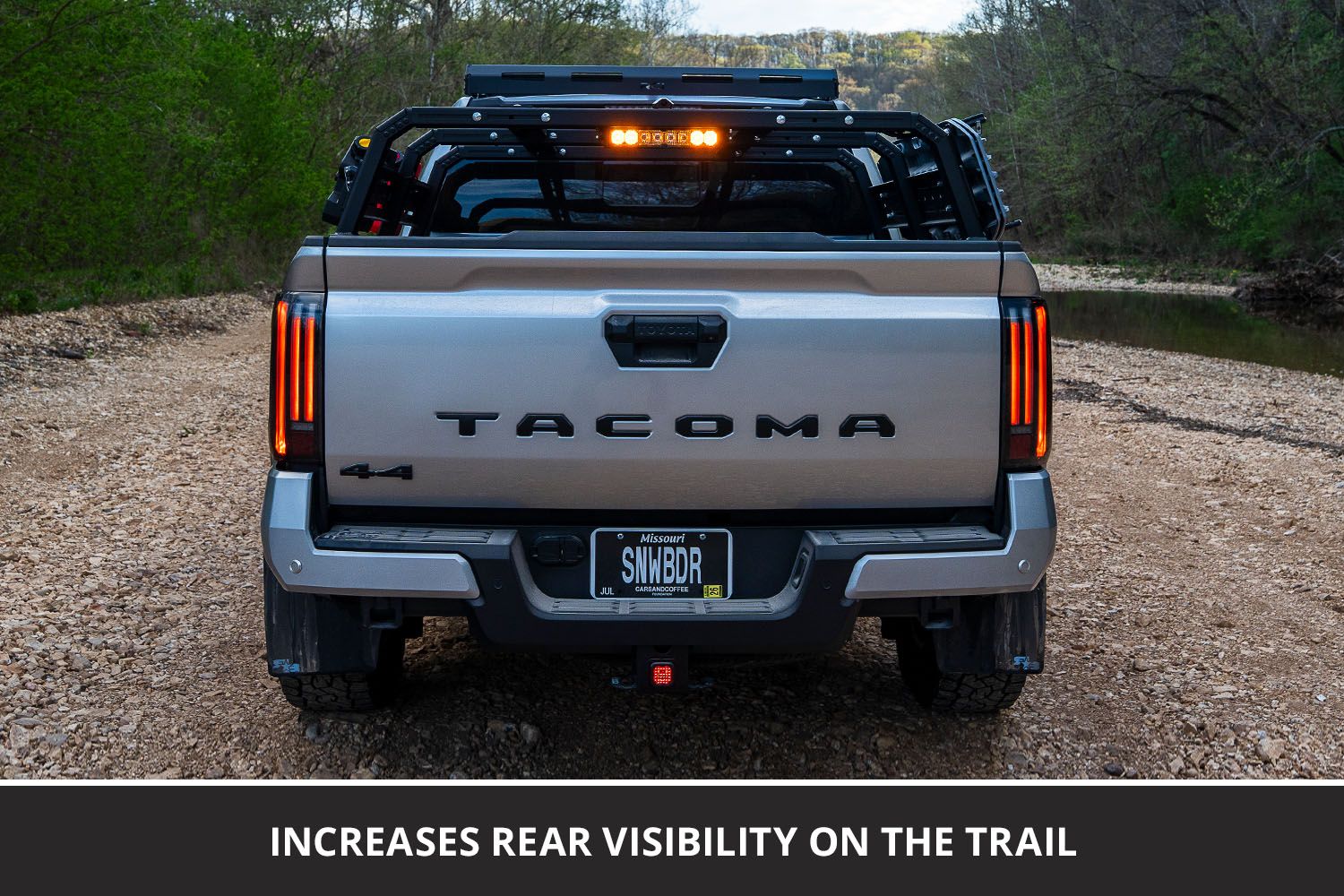

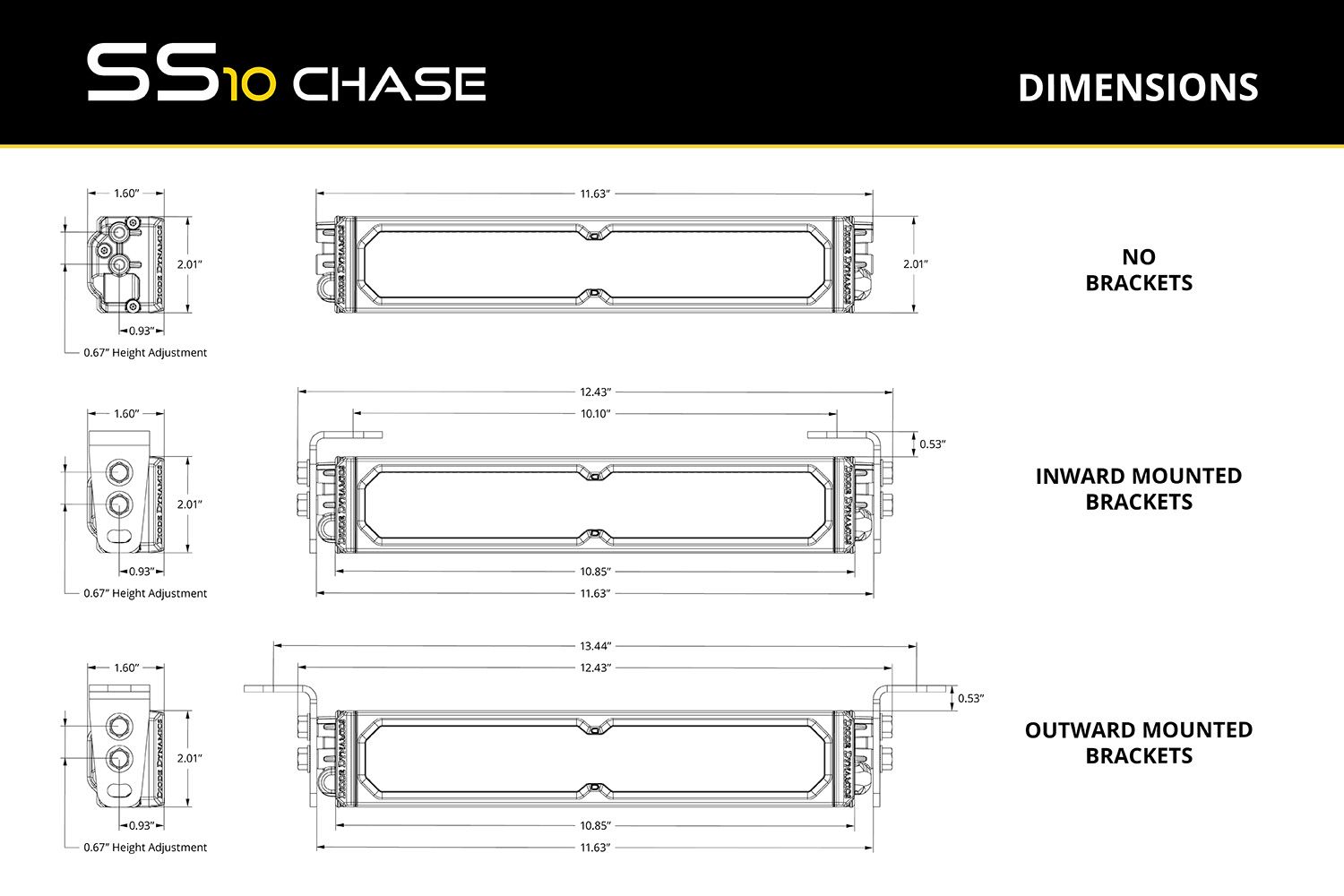

    Flexible Mounting. The SS10 LED Chase Light features a compact design for easy installation on a wide range of setups, including bed racks and roll bars. With a 3-meter extension cable and adjustable mounting points, you can dial in the position of the light for maximum visibility. For roll bar applications, check out our dedicated roll bar mounts.

    Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on- and off-road by racers and enthusiasts alike.

    Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States using globally sourced materials, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

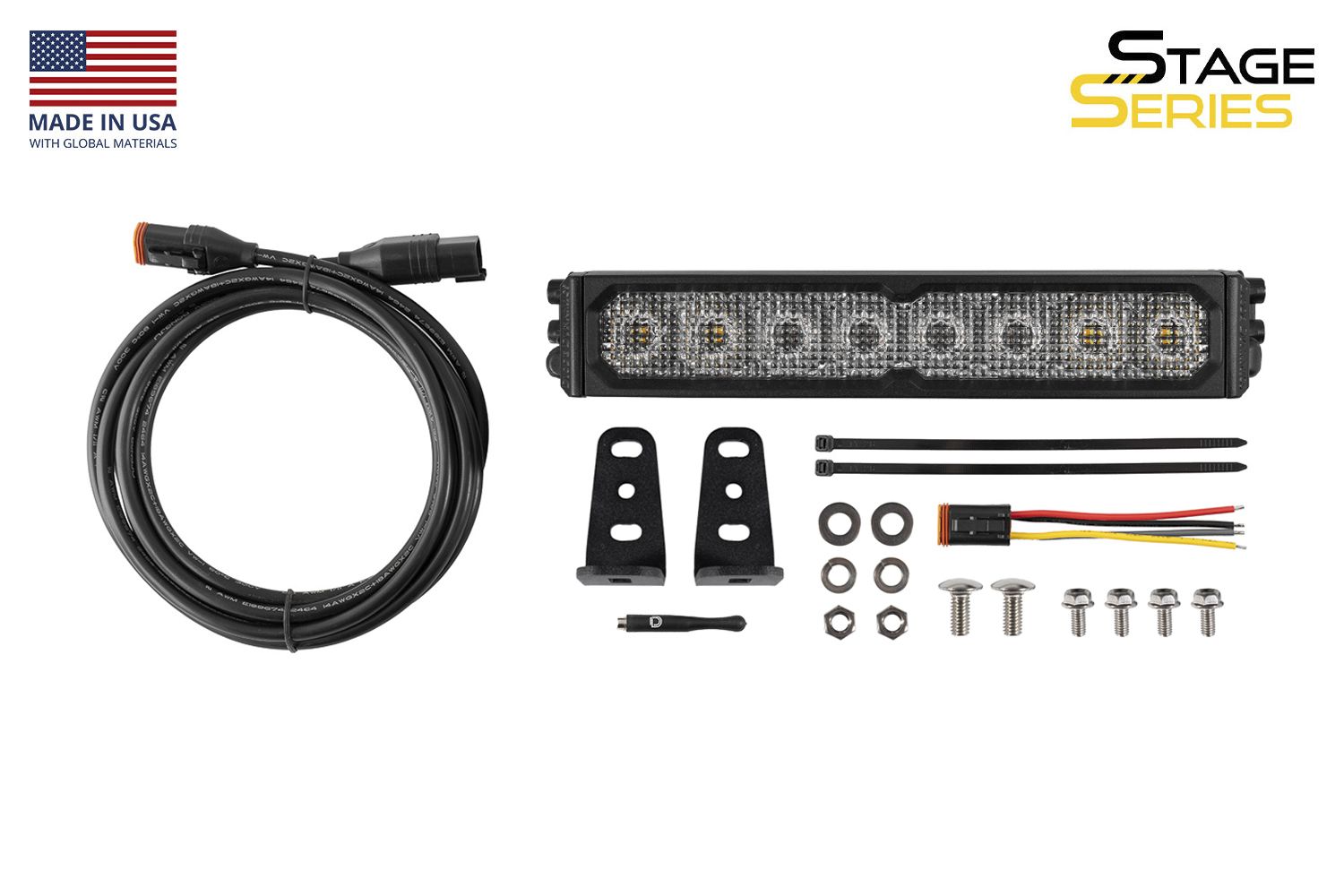

    In the Box:
    • One (1) SS10 LED Chase Light Bar
    • One (1) Magnet Tool
    • One (1) 3m DT Extension Wire
    • Two (2) Zip Ties
    • Mounting Brackets
    • Mounting Hardware
    Quantity: One (1)
    Warranty: Lifetime warranty
    Return Policy: 30-day Return with no restocking fee
    100% Satisfaction Guarantee

    Fitment

    Raw Lumens: White: 960, Red: 220, Amber: 220
    Intensity (cd): White: 650, Red: 125, Amber: 450
    Color Temp (CCT): 6000K
    Beam Angle: Flood, 80°x50°
    Power (watts): White: 4, Red: 2.5, Amber: 4
    Operating Voltage: 9-16V
    Current (amps @ 12.8V): White: .3, Red: .2, Amber: .3
    Wire Size: 18AWG
    Polarity: Polarity Specific
    Operating Temperature: -40C to 85C (-40F to 185F)
    Connector(s): Deutsch DT Input
    Driver Features: Constant Current
    Materials: FR4 PCB, Polycarbonate Lens, Rubber Gasket, A360 Aluminum Casting
    Cooling: Passive, Pin-Fin heatsink
    Compliance Ratings: SAE J575 Durability Test, SAE J1957 Center High Mounted Stop Lamp
    Intrusion Ratings: IP69K Waterproof, High Pressure
    Unit Weight (lb): 2.3
    Product Weight (lb): 2.9
    Shipped Weight (lb): 3.5

    100% Satisfaction Guarantee

    Installation Time: 20-30 minutes

    Tools Needed: Basic Toolset

    Installation Guide: Click to download

    Limited Lifetime Warranty

    Diode Dynamics carries a Lifetime Limited Warranty on select products.

    If you experience any defect with a product, we will diagnose the issue with you, and if necessary, provide a replacement. Click here to learn more.
